Specialized Noise Testing and Source Localization

Specialized field investigations using acoustic imaging, sound intensity, vibration measurements, thermal imaging, and electromagnetic field testing to identify sources and document operating conditions.

Some diagnostic problems require more than conventional sound-level measurements. On-Site Acoustic Testing uses specialized measurement approaches to investigate difficult-to-isolate noise sources, structure-borne vibration, thermal anomalies, and electric or magnetic field conditions. The equipment and test procedure are selected according to the source, operating environment, and measurement objective.

Formal sound-intensity work is method-specific: ISO 9614 addresses source sound power; ISO 15186 addresses building sound insulation using intensity; ASTM E2249 is a laboratory intensity-transmission-loss method; and IEC 61043 addresses intensity instrumentation. See the Acoustic Standards Directory before treating these as interchangeable.

Acoustic Camera Noise Source Localization

Our Convergence Instruments ACAM_64 acoustic camera can be used to visualize and localize sound sources. This is particularly useful around mechanical equipment, industrial systems and other environments containing multiple potential sources where conventional measurements may establish the sound level but not clearly identify which component is responsible.

Convergence Instruments ACAM_64 acoustic camera for noise source localization
Convergence Instruments ACAM_64 acoustic camera

Directional and Distant Noise Measurements

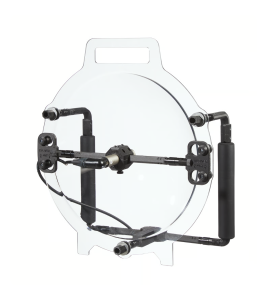

The Klover MiK 16 parabolic microphone provides a highly directional means of investigating more distant or difficult-to-isolate sound sources. Directional measurements can help determine whether a particular source is contributing to a noise condition when conventional omnidirectional measurements include several competing sources.

Klover MiK 16 parabolic microphone for directional noise testing
Klover MiK 16 parabolic microphone

Sound Intensity Measurement and Source Mapping

Sound intensity measurements can help distinguish the direction and magnitude of acoustic energy flow, identify dominant radiating surfaces, and evaluate machinery or building-envelope sound transmission. Depending on the objective, OSAT can perform intensity-based source investigations, surface mapping, and applicable standardized testing. Sound-power determination and building sound-insulation measurements require different methods and measurement conditions; the procedure is selected for the specific project.

Vibration Testing and Analysis

Vibration measurements help trace problems associated with rotating machinery, HVAC equipment, structural transmission, and other building or industrial sources. Depending on the assignment, testing can include vibration level and frequency measurements, equipment operating-condition comparisons, and short- or long-term monitoring to establish patterns and support corrective-action verification.

Thermal Imaging and Investigation

For equipment surveys, building-envelope investigations, and infrared documentation using our FLIR E8 instruments, see Thermal Imaging & Infrared Inspection.

Infrared thermal imaging can supplement acoustic and vibration investigations by locating temperature anomalies associated with equipment, building assemblies, or operating conditions. Thermal images provide supporting diagnostic evidence, not a standalone determination of the cause of a defect; findings are interpreted alongside site observations and other measurements.

Electromagnetic Field (EMF) Testing

EMF surveys can help characterize electric and magnetic field conditions around electrical distribution equipment, machinery, and occupied spaces. The instruments, frequency range, measurement locations, and reporting criteria are established according to the field source and project objective. EMF field surveys are distinct from RF shielding effectiveness or electromagnetic compatibility certification.

Applications

These methods are useful when conventional measurements alone do not explain a noise, vibration, thermal, or electromagnetic field condition. The objective is to identify relevant sources, characterize their operating conditions, and gather evidence appropriate to the investigation.

  • Locating individual sources within complex mechanical or industrial equipment
  • Investigating intermittent or difficult-to-access noise sources
  • Separating a suspected source from other nearby sound sources
  • Directional investigation of more distant noise sources
  • Supporting noise complaint and troubleshooting investigations where source identification is critical
  • Sound intensity mapping and identification of dominant radiating surfaces
  • Machinery, HVAC, and structure-borne vibration investigations
  • Thermal imaging to supplement equipment or building-system diagnostics
  • EMF surveys around electrical equipment and occupied spaces

One-Off Diagnostic Investigations

OSAT also develops one-off measurement programs for unusual problems that do not fit a standard test method. Examples can include locating leaks or other discrete acoustic sources, separating competing machinery sources, investigating inaccessible equipment from a distance, or combining conventional sound-level measurements with acoustic imaging and directional listening.

For product development, formal sound-intensity mapping, acoustic-camera hot-spot analysis, and ISO 4871 noise declarations, see our Product Noise Testing & ISO 4871 Noise Declarations service.

What Clients Receive

Depending on the investigation, deliverables can include identified source locations, acoustic images, sound intensity data, vibration measurements and spectra, thermal images, EMF field readings, photographs, operating-condition comparisons, and technical observations supporting the findings.

Discuss a Specialized Noise Investigation

Contact On-Site Acoustic Testing to discuss the suspected source, site conditions, and measurement objective. We can determine whether sound intensity, acoustic imaging, directional measurements, vibration testing, thermal imaging, EMF surveys, or a combination of methods is appropriate.
